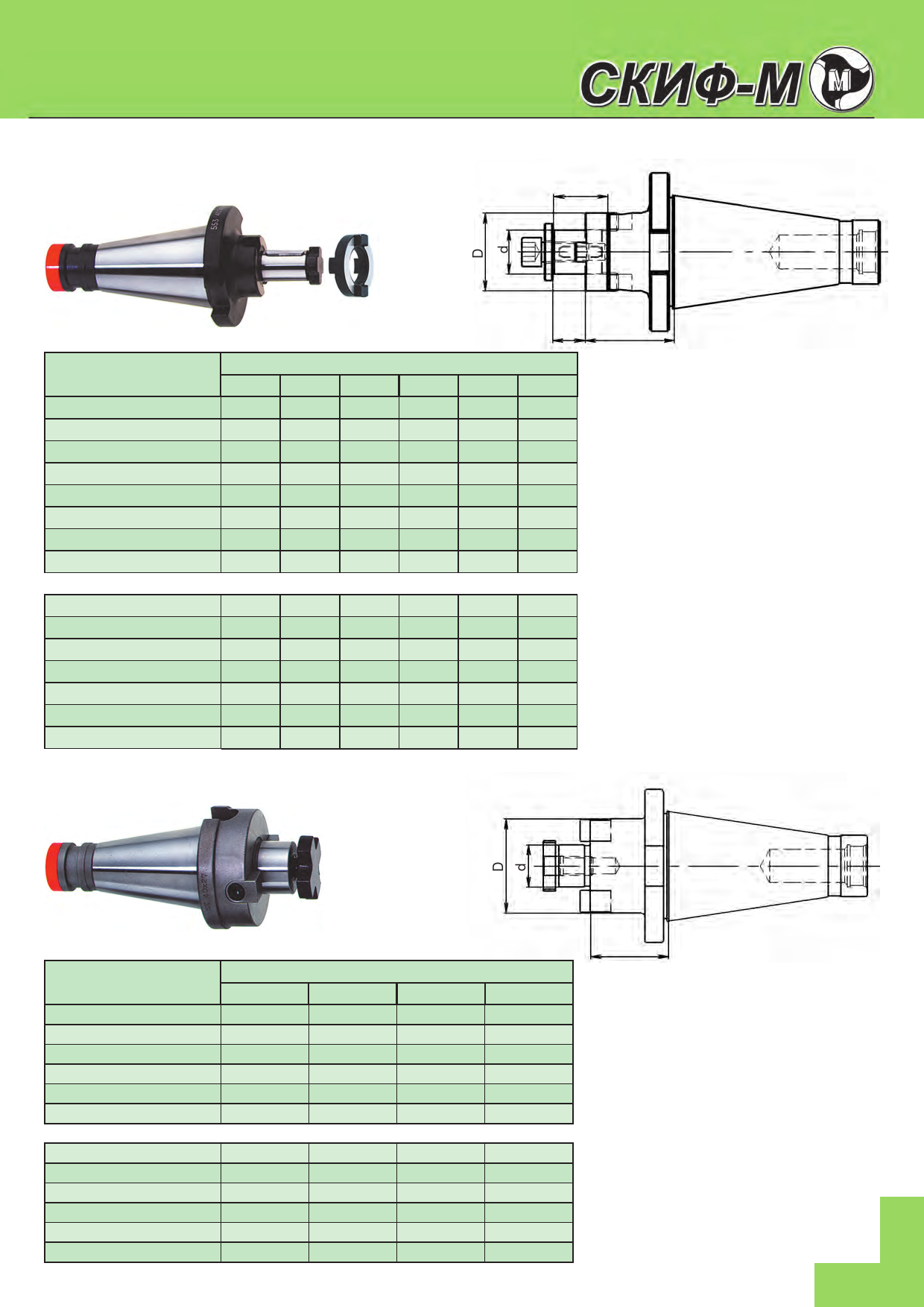

Оправки комбинированные 7/24 DIN 2080 для насадных фрез
L1
TH-SK40...S..H
Обозначение
TH-SK40S16H052
TH-SK40S22H052
TH-SK40S27H052
TH-SK40S32H052
TH-SK40S32H075
TH-SK40S40H052
TH-SK40S40H075
TH-SK40S50H052
TH-SK50...S...H
TH-SK50S16H055
TH-SK50S22H055
TH-SK50S27H055
TH-SK50S32H055
TH-SK50S40H055
TH-SK50S50H055
TH-SK50S60H080
L
Размеры, мм
SK d D H L L1
40 16 32 52 17 27
40 22 40 52 19 31
40 27 48 52 21 33
40 32 58 52 24 38
40 32 58 75 24 38
40 40 70 52 27 41
40 40 70 75 27 41
40 50 90 52 30 46
50 16 32 55 17 27
50 22 40 55 19 31
50 27 48 55 21 33
50 32 58 55 24 38
50 40 70 55 27 41
50 50 90 55 30 46
50 60 110 80 36 52
H
Оправки 7/24 DIN 2080 для торцовых фрез с посадкой форм A, B и C
TH-SK40...A,B,C...H
Обозначение
TH-SK40A22H030
TH-SK40B27H017
TH-SK40B27H030
TH-SK40B32H017
TH-SK40B32H030
TH-SK40C40H030
TH-SK50...A,B,C...H
TH-SK50A22H035
TH-SK50B27H035
TH-SK50B32H040
TH-SK50B40H033
TH-SK50C40H050
TH-SK50C60H055
СКИФ-М
SK
40
40
40
40
40
40
50
50
50
50
50
50
Размеры, мм
dD
22 48
27 60
27 60
32 78
32 78
40 89
H
30
17
30
17
30
30
22 48 35
27 60 35
32 78 40
40 72 33
40 89 50
60 129 55
