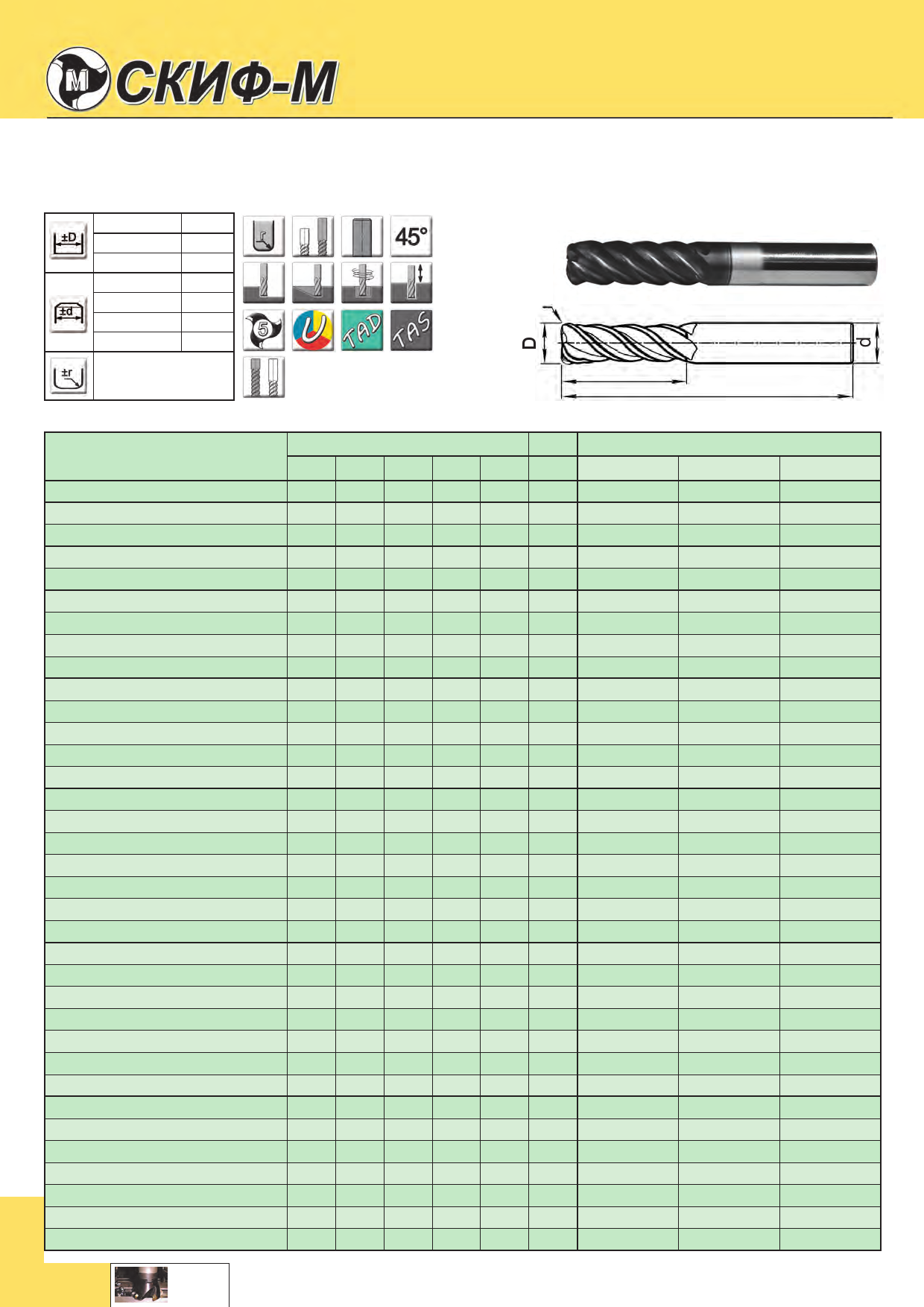

СКИФ-М Каталог инструмента 2015
для размещения заказа - info@skif-m-tools.ru
Монолитные
твердосплавные фрезы
MT190VB
Концевые фрезы с центральным зубом
диапазон
D 12
D > 12
4d6
8 d 10
12 d 16
20 d 25
мм
-0,02
-0,03
-0,008
-0,009
-0,011
-0,013
5-ти зубые
r
± 0,015
aL
Цилиндрический хвостовик DIN 1835A
Обозначение
Размеры, мм
Dd a L
MT190VB-003Z06R05-25-L075-r05
3 6 25 75
MT190VB-004Z06R05-25-L075-r05
MT190VB-004Z06R05-25-L075-r10
4 6 25 75
4 6 25 75
MT190VB-005Z06R05-25-L075-r05
MT190VB-005Z06R05-25-L075-r10
5 6 25 75
5 6 25 75
MT190VB-006Z06R05-25-L075-r05
6 6 25 75
MT190VB-006Z06R05-25-L075-r10
6 6 25 75
MT190VB-006Z06R05-25-L075-r15
6 6 25 75
MT190VB-006Z06R05-25-L075-r20
6 6 25 75
MT190VB-008Z08R05-25-L075-r05
8 8 25 75
MT190VB-008Z08R05-25-L075-r10
8 8 25 75
MT190VB-008Z08R05-25-L075-r15
8 8 25 75
MT190VB-008Z08R05-25-L075-r20
8 8 25 75
MT190VB-008Z08R05-25-L075-r30
8 8 25 75
MT190VB-010Z10R05-38-L100-r05
MT190VB-010Z10R05-38-L100-r10
10 10 38 100
10 10 38 100
MT190VB-010Z10R05-38-L100-r15
10 10 38 100
MT190VB-010Z10R05-38-L100-r20
10 10 38 100
MT190VB-010Z10R05-38-L100-r25
10 10 38 100
MT190VB-010Z10R05-38-L100-r30
10 10 38 100
MT190VB-010Z10R05-38-L100-r40
10 10 38 100
MT190VB-012Z12R05-50-L150-r05
12 12 50 150
MT190VB-012Z12R05-50-L150-r10
12 12 50 150
MT190VB-012Z12R05-50-L150-r15
12 12 50 150
MT190VB-012Z12R05-50-L150-r20
12 12 50 150
MT190VB-012Z12R05-50-L150-r25
12 12 50 150
MT190VB-012Z12R05-50-L150-r30
12 12 50 150
MT190VB-012Z12R05-50-L150-r40
12 12 50 150
MT190VB-014Z14R05-75-L150-r05
14 14 75 150
MT190VB-014Z14R05-75-L150-r10
14 14 75 150
MT190VB-014Z14R05-75-L150-r15
14 14 75 150
MT190VB-014Z14R05-75-L150-r20
14 14 75 150
MT190VB-014Z14R05-75-L150-r25
14 14 75 150
MT190VB-014Z14R05-75-L150-r30
14 14 75 150
MT190VB-014Z14R05-75-L150-r40
14 14 75 150
Длинное исполнение, радиус при вершине зуба
Код заказа
r Z без покрытия TAS
TAD
0,5 5 C-ULR503-05 C-SLR503-05 C-TLR503-05
0,5 5 C-ULR504-05 C-SLR504-05 C-TLR504-05
1 5 C-ULR504-10 C-SLR504-10 C-TLR504-10
0,5 5 C-ULR505-05 C-SLR505-05 C-TLR505-05
1 5 C-ULR505-10 C-SLR505-10 C-TLR505-10
0,5 5 C-ULR506-05 C-SLR506-05 C-TLR506-05
1 5 C-ULR506-10 C-SLR506-10 C-TLR506-10
1,5 5 C-ULR506-15 C-SLR506-15 C-TLR506-15
2 5 C-ULR506-20 C-SLR506-20 C-TLR506-20
0,5 5 C-ULR508-05 C-SLR508-05 C-TLR508-05
1 5 C-ULR508-10 C-SLR508-10 C-TLR508-10
1,5 5 C-ULR508-15 C-SLR508-15 C-TLR508-15
2 5 C-ULR508-20 C-SLR508-20 C-TLR508-20
3 5 C-ULR508-30 C-SLR508-30 C-TLR508-30
0,5 5 C-ULR510-05 C-SLR510-05 C-TLR510-05
1 5 C-ULR510-10 C-SLR510-10 C-TLR510-10
1,5 5 C-ULR510-15 C-SLR510-15 C-TLR510-15
2 5 C-ULR510-20 C-SLR510-20 C-TLR510-20
2,5 5 C-ULR510-25 C-SLR510-25 C-TLR510-25
3 5 C-ULR510-30 C-SLR510-30 C-TLR510-30
4 5 C-ULR510-40 C-SLR510-40 C-TLR510-40
0,5 5 C-ULR512-05 C-SLR512-05 C-TLR512-05
1 5 C-ULR512-10 C-SLR512-10 C-TLR512-10
1,5 5 C-ULR512-15 C-SLR512-15 C-TLR512-15
2 5 C-ULR512-20 C-SLR512-20 C-TLR512-20
2,5 5 C-ULR512-25 C-SLR512-25 C-TLR512-25
3 5 C-ULR512-30 C-SLR512-30 C-TLR512-30
4 5 C-ULR512-40 C-SLR512-40 C-TLR512-40
0,5 5 C-ULR514-05 C-SLR514-05 C-TLR514-05
1 5 C-ULR514-10 C-SLR514-10 C-TLR514-10
1,5 5 C-ULR514-15 C-SLR514-15 C-TLR514-15
2 5 C-ULR514-20 C-SLR514-20 C-TLR514-20
2,5 5 C-ULR514-25 C-SLR514-25 C-TLR514-25
3 5 C-ULR514-30 C-SLR514-30 C-TLR514-30
4 5 C-ULR514-40 C-SLR514-40 C-TLR514-40
G64
G80
G81-G82
info@skif-m-tools.ru
www.skif-m-tools.ru
СКИФ-М
