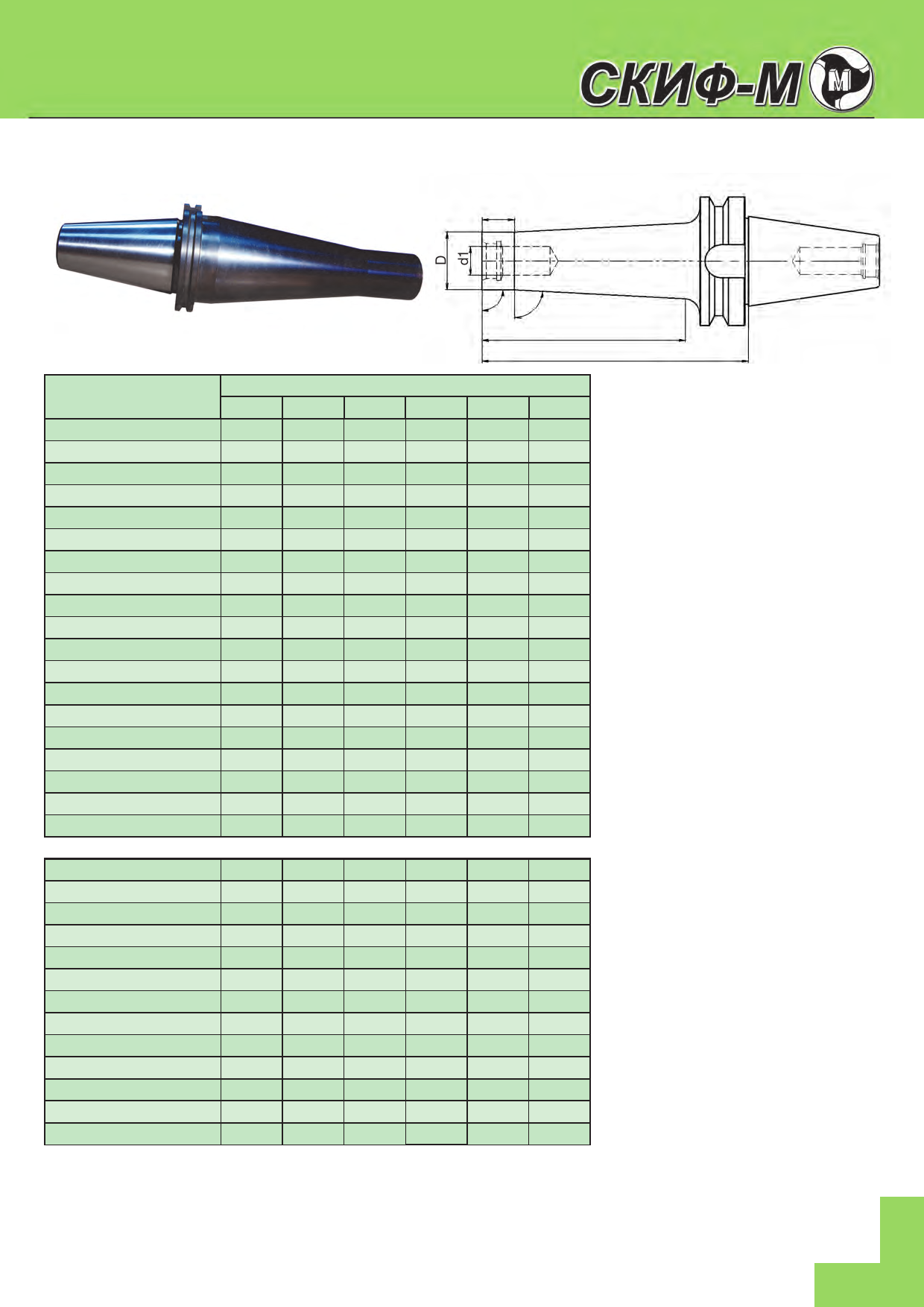

Оправки c конусом 7/24 MAS BT 403
h
TH-BT40...G...H
Обозначение
TH-BT40G08H050
TH-BT40G08H075
TH-BT40G08H100
TH-BT40G08H120
TH-BT40G10H055
TH-BT40G10H080
TH-BT40G10H105
TH-BT40G10H130
TH-BT40G10H150
TH-BT40G12H060
TH-BT40G12H085
TH-BT40G12H110
TH-BT40G12H135
TH-BT40G12H160
TH-BT40G16H070
TH-BT40G16H095
TH-BT40G16H120
TH-BT40G16H145
TH-BT40G16H170
TH-BT50...G...H
TH-BT50G12H070
TH-BT50G12H120
TH-BT50G12H170
TH-BT50G12H220
TH-BT50G16H070
TH-BT50G16H120
TH-BT50G16H170
TH-BT50G16H220
TH-BT50G16H270
TH-BT50G20H070
TH-BT50G20H120
TH-BT50G20H170
TH-BT50G20H220
90° 87°
h1
H
Размеры, мм
BT d1
D
h
H h1
40 M08 14,5 10 50 17
40 M08 14,5 10 75 42
40 M08 14,5 10 100 67
40
M08 14,5
10
120
87
40 M10 18,5 10 55 22
40 M10 18,5 10 80 47
40
M10 18,5
10
105
72
40
M10 18,5
10
130
97
40 M10 18,5 10 150 117
40 M12 22 10 60 27
40 M12 22 10 85 52
40 M12 22
10 110 77
40 M12 22
10 135 102
40 M12 22
10 160 127
40 M16 28 10 70 37
40 M16 28 10 95 62
40 M16 28
10 120 84
40 M16 28
10 145 112
40 M16 28
10 170 137
50 M12 28 10 70 26
50 M12 22
10 120 76
50 M12 22
10 170 126
50 M12 22
10 220 176
50 M16 22 10 70 26
50 M16 28
10 120 76
50 M16 28
10 170 126
50 M16 28
10 220 176
50 M16 28
10 270 226
50 M20 28 10 70 26
50
M20 36,2
10
120
76
50 M20 36,2 10 170 126
50 M20 36,2 10 220 176
